优点：
描述：
1) 尺寸:
1/2'' ~ 12''; 20mm ~ 315mm ; DN15 ~ DN300
2) 标准: ANSI, DIN
3) 连接: 插口
4) 材质和颜色 : PVC(深灰色), CPVC(浅灰色)
5) 操作温度: PVC(0~55℃); CPVC(0~95℃)

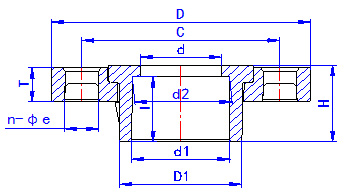

产品规格（单位: MM）
SCH80
|
尺寸 |
D |
D1 |
C |
d |
d1 |
d2 |
H |
T |
I |
n-Φe |
|
1/2' |
87.00 |
30.00 |
60.30 |
15.00 |
21.54 |
21.23 |
26.00 |
14.00 |
23.00 |
4-16 |
|
3/4' |
98.00 |
38.00 |
70.00 |
20.00 |
26.87 |
26.57 |
29.00 |
15.00 |
26.00 |
4-16 |
|
1' |
108.00 |
47.00 |
79.40 |
25.00 |
33.66 |
33.27 |
33.00 |
16.00 |
29.00 |
4-16 |
|
1¼' |
117.00 |
55.00 |
88.90 |
32.00 |
42.42 |
42.04 |
37.00 |
18.00 |
32.00 |
4-16 |
|
1½' |
128.00 |
60.50 |
98.00 |
40.00 |
48.56 |
48.11 |
42.80 |
19.00 |
36.60 |
4-16 |
|
2' |
155.50 |
73.80 |
121.00 |
51.00 |
60.63 |
60.17 |
45.50 |
21.00 |
40.00 |
4-19 |
|
2½' |
178.00 |
89.00 |
140.00 |
63.00 |
73.38 |
72.85 |
52.50 |
25.00 |
46.50 |
4-19 |
|
3' |
192.00 |
108.00 |
152.00 |
77.00 |
89.31 |
88.70 |
56.50 |
27.00 |
50.00 |
4-19 |
|
4' |
230.00 |
133.00 |
191.20 |
102.00 |
114.76 |
114.10 |
67.00 |
29.00 |
59.80 |
8-19 |
|
5' |
256.00 |
161.80 |
216.00 |
129.00 |
141.81 |
141.00 |
77.50 |
31.00 |
69.40 |
8-22 |
|
6' |
285.00 |
191.00 |
241.00 |
156.00 |
168.83 |
168.00 |
88.00 |
33.00 |
79.00 |
8-22 |
|
8' |
343.00 |
243.00 |
298.00 |
204.00 |
219.84 |
218.70 |
118.00 |
36.00 |
102.00 |
8-22 |
|
10' |
406.40 |
308.00 |
362.00 |
256.00 |
273.81 |
272.67 |
151.00 |
42.00 |
127.50 |
12-25 |
|
12' |
483.00 |
364.00 |
432.00 |
305.00 |
324.61 |
323.47 |
190.00 |
42.00 |
165.00 |
12-25 |
PN16
|
尺寸 |
D |
D1 |
C |
d |
d1 |
d2 |
H |
T |
I |
n-Φe |
|
8'（200） |
343.0 |
248.0 |
298.0 |
204.0 |
225.7 |
225.3 |
131.0 |
36.0 |
119.0 |
8-23 |
|
10'（250） |
|
275.0 |
350.0 |
225.0 |
250.8 |
250.3 |
141.0 |
32.0 |
131.5 |
12-23 |
|
12'（300） |
445.0 |
346.0 |
400.0 |
300.0 |
316.0 |
315.4 |
190.0 |
42.0 |
165.0 |
12-23 |
395.0
