优点：
描述：

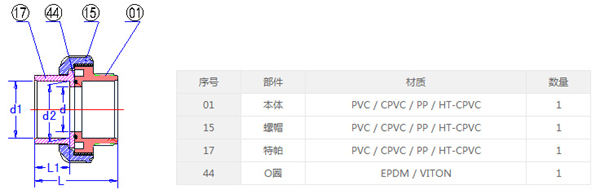

1) 尺寸:
1/2'' ~ 4''; 20mm ~ 110mm ; DN15 ~ DN100
2) 标准: ANSI, DIN, JIS, CNS
3) 连接：插口，螺纹(NPT,PT,BSPF),熔接
4) 材质和颜色 : PVC(深灰色/白色), CPVC(浅灰色), PP & HT-CPVC(米黄色)
5) 操作温度: PVC(0~55℃); CPVC,
HT-CPVC & PP(0~95℃)
|
尺寸 |
d |
d1 |
d2 |
D |
L |
L1 |
||||||||
|
ANSI |
DIN |
JIS |
CNS |
ANSI |
DIN |
JIS |
CNS |
ANSI/JIS/CNS |
DIN |
ANSI/JIS/CNS |
DIN |
|||
|
1/2'(15) |
15 |
21.54 |
20.30 |
22.40 |
22.40 |
21.23 |
20.10 |
21.73 |
21.90 |
54.00 |
53.50 |
41.00 |
22.30 |
16.00 |
|
3/4'(20) |
20 |
26.87 |
25.30 |
26.45 |
26.40 |
26.57 |
25.10 |
25.69 |
25.90 |
63.00 |
60.00 |
47.50 |
25.50 |
19.00 |
|
1'(25) |
25 |
33.65 |
32.30 |
32.55 |
34.50 |
33.27 |
32.10 |
31.70 |
33.90 |
73.50 |
67.00 |
53.50 |
28.60 |
22.00 |
|
1¼'(32) |
32 |
42.42 |
40.30 |
38.60 |
42.50 |
42.04 |
40.10 |
37.65 |
41.90 |
84.50 |
76.00 |
63.00 |
32.00 |
26.00 |
|
1½'(40) |
40 |
48.56 |
50.30 |
48.70 |
48.60 |
48.11 |
50.10 |
47.74 |
47.90 |
98.00 |
83.00 |
78.00 |
35.00 |
32.00 |
|
2'(50) |
50 |
60.63 |
63.30 |
60.80 |
60.60 |
60.17 |
63.10 |
59.78 |
59.90 |
119.00 |
90.00 |
38.00 |
||
|
2½'(65) |
63 |
73.38 |
75.30 |
76.60 |
76.70 |
72.85 |
75.10 |
75.68 |
75.90 |
150.00 |
110.00 |
47.00 |
||
|
3'(80) |
75 |
89.31 |
90.40 |
89.60 |
89.70 |
88.70 |
90.10 |
88.55 |
88.90 |
169.00 |
127.00 |
51.00 |
||
|
4'(100) |
97 |
114.76 |
110.40 |
114.70 |
115.00 |
114.10 |
110.10 |
113.60 |
113.80 |
211.00 |
158.00 |
61.00 |
||
