优点：
1) 材质符合饮用水标准
2) 设计和性能独特
3) 材料经过纳米改性，提高产品耐压性及抗冲击性能
4) 原料添加抗紫外线吸收剂和抗氧剂，提高产品耐候性，耐老化性能
5) 可定做透明上本体
6) 密封垫可定做EPDM, PTFE或VITON
描述：
1) 材质:UPVC,CPVC,PP,Clear
PVC,PVDF
2) 尺寸:1/2''-4'';20mm-110mm;DN15-DN100
3) 标准:ANSI,DIN,JIS
4) 连接:插口,螺纹(NPT,PT,BSPF),熔接,焊接
5) 工作压力:150 PSI
6) 操作温度:UPVC(5~55℃);CPVC&PPH(5~90℃);PVDF(-20~120℃)
7) 本体颜色:UPVC(深灰色),CPVC(浅灰色),PPH(米黄色),Clear PVC(透明),PVDF(象牙色)
|

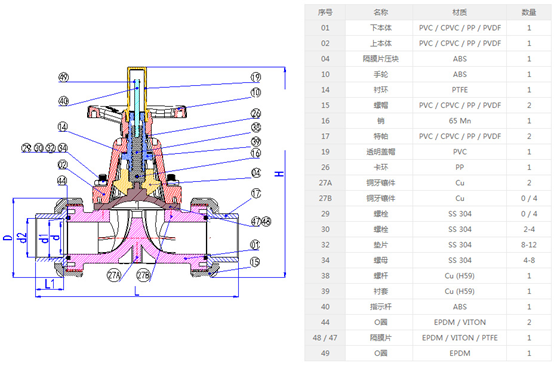

尺寸 |
d |
d1 |
d2 |
D |
L1 |
L |
H |
||||||||
|
|
ANSI |
DIN |
JIS |
CNS |
ANSI |
DIN |
JIS |
CNS |
ANSI /JIS /CNS |
ANSI/JIS/CNS |
DIN |
||||
|
1/2'(15) |
15.00 |
21.54 |
20.30 |
22.40 |
22.40 |
21.23 |
20.10 |
21.73 |
21.90 |
54.00 |
22.30 |
16.00 |
142.60 |
130.00 |
154.50 |
|
3/4'(20) |
20.00 |
26.87 |
25.30 |
26.45 |
26.40 |
26.57 |
25.10 |
26.69 |
25.90 |
63.00 |
25.50 |
19.00 |
159.00 |
146.00 |
163.50 |
|
1'(25) |
25.00 |
33.65 |
32.30 |
32.55 |
34.50 |
33.27 |
32.10 |
31.70 |
33.90 |
73.50 |
28.60 |
22.00 |
185.20 |
172.00 |
178.20 |
|
1¼'(32) |
32.00 |
42.42 |
40.30 |
38.60 |
42.50 |
42.04 |
40.10 |
37.65 |
41.90 |
84.50 |
32.00 |
26.00 |
246.00 |
234.00 |
254.00 |
|
1½'(40) |
40.00 |
48.56 |
50.30 |
48.70 |
48.60 |
48.11 |
50.10 |
47.74 |
47.90 |
98.00 |
35.00 |
32.00 |
252.00 |
246.00 |
261.00 |
|
2'(50) |
50.00 |
60.63 |
63.30 |
60.80 |
60.60 |
60.17 |
63.10 |
59.78 |
59.90 |
118.00 |
38.00 |
287.00 |
294.00 |
||
|
2½'(65) |
65.00 |
73.38 |
75.30 |
76.60 |
76.70 |
72.85 |
75.10 |
75.68 |
75.90 |
150.00 |
47.00 |
359.00 |
371.00 |
||
|
3'(80) |
75.00 |
89.31 |
90.40 |
89.60 |
89.70 |
88.70 |
90.10 |
88.90 |
88.90 |
169.00 |
51.00 |
409.00 |
400.00 |
||
|
4'(100) |
95.00 |
114.76 |
110.40 |
114.70 |
114.70 |
114.10 |
110.10 |
113.60 |
113.80 |
211.00 |
61.00 |
494.00 |
440.00 |
||
